Hey there! As a supplier of 40Cr hydraulic piston rods, I've seen firsthand how impurities can mess things up. Let's dive into what kind of impact these impurities have on our 40Cr hydraulic piston rods.
First off, let's understand what 40Cr is. 40Cr is a commonly used alloy structural steel. It's got good hardenability, strength, and toughness, which makes it a top - choice material for hydraulic piston rods. But when impurities get into the mix, it's like adding sand to a well - oiled machine.
One of the most common impurities in 40Cr steel is sulfur (S). Sulfur forms iron sulfide (FeS) in the steel. FeS has a low melting point, around 985°C. During the hot - working process of the piston rod, when the temperature is high, the FeS starts to melt. This can lead to hot cracking in the piston rod. Imagine you're manufacturing these rods, and you're putting in all this effort to shape and form them, and then suddenly, cracks appear because of this pesky sulfur. It not only affects the appearance of the piston rod but also seriously undermines its mechanical properties. The cracked areas become weak points, and the rod may fail under normal working conditions.
Phosphorus (P) is another impurity that causes trouble. Phosphorus makes the steel brittle, especially at low temperatures. This is known as cold brittleness. In hydraulic systems, piston rods may operate in various temperature environments. If there's too much phosphorus in the 40Cr piston rod, in cold conditions, it can become extremely fragile. A small shock or impact that the rod would normally withstand can cause it to break. This is a huge problem for hydraulic equipment, as a broken piston rod can lead to system failure, costly repairs, and downtime.
Non - metallic inclusions are also a big headache. These can be things like oxides, silicates, and sulfides. They're like little rocks in the steel matrix. When the piston rod is under stress, these non - metallic inclusions act as stress concentrators. The stress around these inclusions is much higher than in the surrounding steel. Over time, this can lead to the initiation and propagation of cracks. For example, in a high - pressure hydraulic system, the piston rod is constantly pushed and pulled. The stress concentration around non - metallic inclusions can cause micro - cracks to form. These micro - cracks then grow and eventually lead to the failure of the piston rod.
Now, let's talk about how impurities affect the surface finish of the 40Cr hydraulic piston rod. During the machining process, impurities can cause uneven material removal. For instance, if there are hard non - metallic inclusions, the cutting tool may have a hard time cutting through them. This can result in a rough surface finish. A rough surface on a piston rod is a no - no in hydraulic systems. It can cause increased friction between the piston rod and the seal, leading to faster wear of the seal. And a worn - out seal means hydraulic fluid leakage, which can reduce the efficiency of the hydraulic system and also cause environmental pollution.
Impurities can also have an impact on the corrosion resistance of the 40Cr piston rod. In a hydraulic system, the piston rod is often exposed to hydraulic fluid, which may contain some corrosive substances. If there are impurities in the rod, they can create micro - galvanic cells on the surface. For example, if there are areas with different compositions due to impurities, a potential difference can be established. This causes electrochemical corrosion to occur more easily. Corrosion can eat away at the surface of the piston rod, reducing its diameter and weakening its structure.
When it comes to the performance of the 40Cr piston rod in a hydraulic system, impurities can lead to inconsistent performance. The mechanical properties of the rod may vary from one part to another because of the uneven distribution of impurities. This means that the rod may not perform as expected in different working conditions. For example, in a multi - stage hydraulic cylinder, if the piston rod has inconsistent properties due to impurities, it can cause uneven movement of the cylinder, leading to inaccurate positioning and reduced overall system performance.
As a supplier, we're constantly working to minimize the impact of impurities. We use advanced smelting techniques to reduce the content of sulfur, phosphorus, and other impurities in the 40Cr steel. We also have strict quality control measures in place to detect and remove any non - metallic inclusions. But it's an ongoing battle.

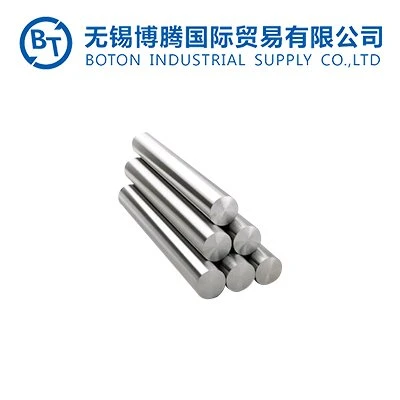

If you're in the market for high - quality hydraulic piston rods, you might also be interested in some of our other products. Check out our S45C Piston Rod, Stainless Steel Precision Bar, and CK45 Precision Piston Rod. These products are also carefully crafted to meet the highest standards.
We understand that the quality of piston rods is crucial for your hydraulic systems. That's why we're committed to providing you with the best products possible. If you have any questions about our 40Cr hydraulic piston rods or any of our other products, or if you're interested in purchasing, don't hesitate to reach out. We're here to help you find the perfect solution for your hydraulic needs.
References
- ASM Handbook Committee. ASM Handbook Volume 1: Properties and Selection: Irons, Steels, and High - Performance Alloys. ASM International, 2007.
- Kalpakjian, S., & Schmid, S. R. Manufacturing Engineering and Technology. Pearson, 2014.
